Checkout | Integrating Embedded Checkout

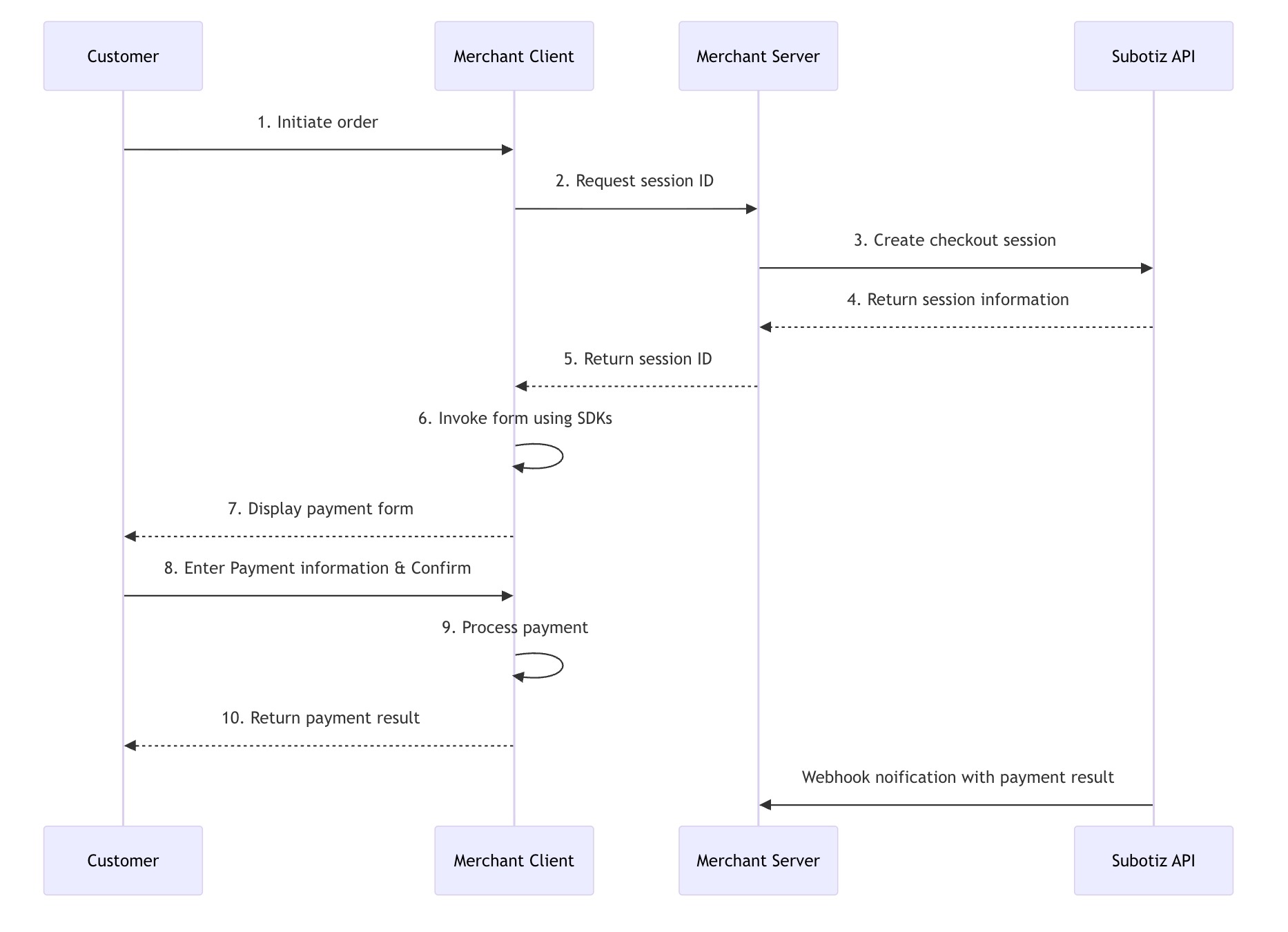

Checkout flow

1. When a customer is ready to complete a purchase, a checkout request is initiated from your client-side application to your server. Your server should use the Subotiz API to create a Checkout Session, passing your platform's unique business identifier (order_id) as a parameter during creation. This order_id is crucial for subsequently correlating the trade order.
2. The Checkout Session provides a Session ID. Your client-side application can then use the SDK to invoke and display the Subotiz payment form to the customer.
3. The customer enters their payment information into the Subotiz form and completes the transaction.
4. Upon transaction completion, Subotiz will send a notification to your server via a webhook. This notification includes a payment success event, which contains the order_id originally passed during the session creation. This allows you to correlate your platform's order with Subotiz's trade order.

Before you begin

Create products and prices

• Create a product：
• Create product pricing:

Provide a payment success page

• Your application needs to provide a publicly accessible page (Return URL) to display after a successful payment. After the customer completes the payment, Subotiz will redirect them to this page.
• Meanwhile, merchants can also customize the success workflow as they want. A callback function will be automatically triggered only when redirect_on_completion is set to if_required during Checkout Session creation. Subotiz will call back this function to allow merchants to customize their own success workflow. In this way, customers can enter a success page without automatic redirection.


Provide a Webhook endpoint

Integration process

1. Load Subotiz.js

<script src="https://checkout.subotiz.com/static/subotiz/v0/subotiz.js"></script>

2. Provide a container node

<div id="your_domElement"><!-- The checkout page will be displayed here --></div>

3. Create checkout session

• Example 1: Creating a checkout session with products

curl --location 'https://api.subotiz.com/api/v1/session' \
--header 'Content-Type: application/json' \
--header 'Hub-Timestamp: 1755695704350' \
--header 'Hub-Access-No: 77d52a21dc032b4' \
--header 'Request-Id: dd7fb126-be31-4144-a1af-e4bf4203eb92' \
--header 'Hub-Signature: 4830f629ff065be043c4f4b2f908ef6418d18e4ef9d6a288313ded21f1b0ec13' \
--data-raw '{
        "access_no":       "77d52a21dc032b4",
        "sub_merchant_id": "2816433",
        "order_id":        "123e4567-e89b-12-a456-426622201a",
        "payer_id": "customer_id_001",
        "customer_id":     "",
        "email":           "zhangsan@subotiz.com",
        "line_items": [                        # Product info (required for checkout mode)
            {
                "price_id": "543321366326164797",
                "quantity": "1"
            }
        ],
        "return_url":   "https://www.subotiz.com",
        "cancel_url":   "https://www.subotiz.com",
        "callback_url": "https://webhook.site/2c889bcb-9923-4551-909a-d827f1c326e3",
        "mode": "checkout",      # Choose 'checkout' mode when product data is present
        "integration_method": "embedded",   # Select embedded integration
        "redirect_on_completion": "if_required" # Choose redirection behavior based on business needs; this example redirects only when necessary
    }'

• order_id: Your platform's internal order ID, used for subsequent business data correlation.
• integration_method: Set to embedded to use the embedded form integration method.
• return_url: The URL the customer is redirected to after a successful payment.
• mode: Choose checkout mode when product data is present.

• Example 2: Creating a checkout session without products/pricing

curl --location 'https://api.subotiz.com/api/v1/session' \
--header 'Content-Type: application/json' \
--header 'Hub-Timestamp: 1755695704350' \
--header 'Hub-Access-No: 77d52a21dc032b4' \
--header 'Request-Id: dd7fb126-be31-4144-a1af-e4bf4203eb92' \
--header 'Hub-Signature: 4830f629ff065be043c4f4b2f908ef6418d18e4ef9d6a288313ded21f1b0ec13' \
--data-raw '{
        "access_no":       "77d52a21dc032b4",
        "sub_merchant_id": "2816433",
        "order_id":        "123e4567-e89b-12-a456-426622201a",
        "payer_id": "customer_id_001",
        "customer_id":     "",
        "email":           "zhangsan@subotiz.com",
        "return_url":   "https://www.subotiz.com",
        "cancel_url":   "https://www.subotiz.com",
        "callback_url": "https://webhook.site/2c889bcb-9923-4551-909a-d827f1c326e3",
        "mode": "payment",            # Select payment mode when no product data is present
        "total_amount": "10",         # Amount to collect (required for payment mode)
        "integration_method": "embedded",    # Choose embedded integration
        "redirect_on_completion": "if_required" # Configure redirection behavior; this example only redirects when necessary
    }'

4. Initialize the checkout page

// After importing via the script tag, Subotiz is automatically attached to the window object
const { Subotiz } = window;

// Create an SDK instance
const subotiz = Subotiz();

// Initialize checkout
const checkout = await subotiz.initEmbeddedCheckout({
  fetchSessionId: async () => {
    // Fetch the sessionId from your server
    const response = await fetch('/api/session');
    const data = await response.json();
    return data.sessionId;
  },
  environment: 'TEST', // 'TEST' | 'PRODUCTION'
  // The callback function when the payment completed only triggers when `redirect_on_completion`  is set to `if_required` during Checkout session creation
  onComplete: () => {
    console.log('Payment completed!');
  }
});

// Mount to the page
checkout.mount('#your_domElement');
